04// Massing Study
Testing Multiple Massing Schemes Proposed by the Design Team
Scheme 1 This scheme shows one possible massing for the program on the site. The L shape creates a shaded side courtyard on the site. This scheme requires at least 60% glazing to allow the daylight to penetrate deep into the floor plate.
Scheme 2 This scheme shows one possible massing for the program on the site. It creates a shaded North facade. The central courtyard created would also serve as a good shaded outdoor space during summer months. This scheme requires at least 60% glazing to allow the daylight to penetrate deep into the floor plate.
Scheme 3 This scheme shows one possible massing for the program on the site. It creates a shaded North facade and get away with 50% glazing to allow the daylight to penetrate deep into the floor plate.
Scheme 3 Developed
EUI
– As the compared different massing schemes and held the HVAC system constant, now we held the scheme constant and tested multiple HVAC systems to understand their return on investment.
05// Cost Vs Energy Optimization

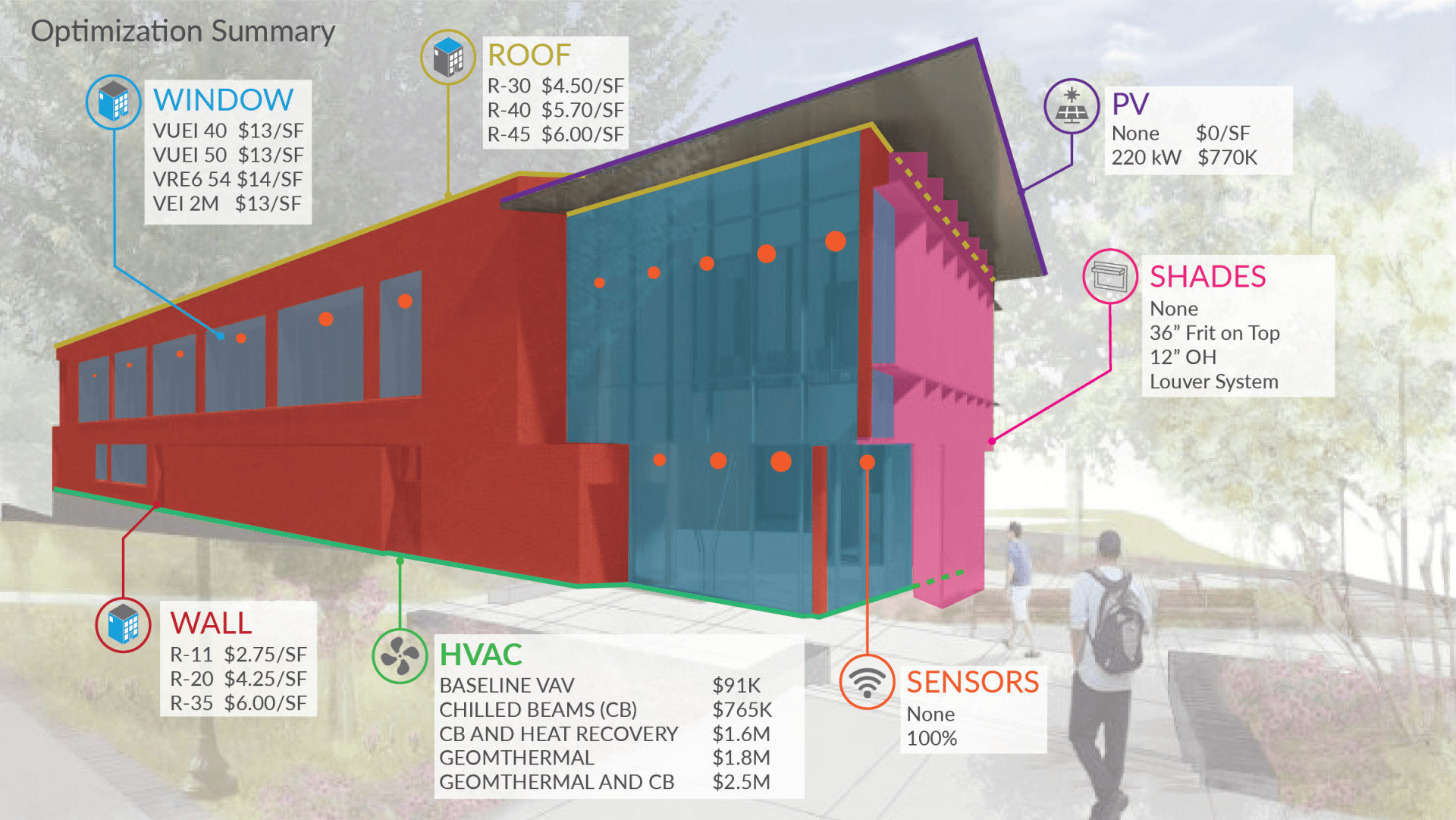

As seen in the diagram above, many decisions including window type, wall insulation, roof insulation, HVAC, photovoltaic panels, shading strategy and sensors had multiple options that needed to be tested. This led to over 20,000 possible combinations, each with a different energy usage and cost. Cove.tool allowed the team to study these and find the most cost-optimal way to meet their goals.
